19/20" E5 Daytona Titanium Brushed Tint 19x9.5 20x11 Concave Wheels for Corvette C7 Stingray (2014-2019) | Set of 4

Authorized E5 Wheels Dealer | Set of 4 Rims

Write a review
 E5DA1995E53565TIU_2011E76565TIU-01
$2,700.00
Set of 4
In Stock • Ships FREE
Out of Stock

Finish: Titanium Brushed Tint

E5 Daytona Gloss BlackGloss Black$2,700E5 Daytona Titanium Brushed TintTitanium Brushed Tint$2,700E5 Daytona Bronze Brushed TintBronze Brushed Tint$2,700E5 Daytona ChromeChrome$4,100

Free Shipping within the USA

Ships in 1-2 Business Days

Secure Shopping
Customer Support Headshot
Need help?
Speak with an expert
1-800-814-8423
Email Us

Specifications

Brand The manufacturer or company that produces the item.
E5
Model Name The specific name or series used to identify this design or version.
Daytona
Wheel Size The diameter and width of the wheel, typically listed as diameter x width in inches.
19x9.5 Front and 20x11 Rear
Center Bore The hole in the center of the wheel that fits over the vehicle’s hub for proper alignment.
70.3 (hub-centric fit - no rings needed)
Center Caps Covers for the wheel’s center opening, often featuring the brand logo.
E5 Center Caps Included
Finish The color and surface coating applied to the wheel for appearance and protection.
Titanium
Bolt Pattern Indicates the number of lug holes and the diameter of the circle they form, used to mount the wheel.
5x120.65
Offset The distance between the wheel’s mounting surface and its centerline, affecting fitment and stance.
53mm front and 76mm rear
TPMS Compatible Supports the use of Tire Pressure Monitoring System sensors.
YES
Quantity The number of individual units included in this product listing.
Set of 4
Structure Refers to how the wheel is manufactured—impacts weight, strength, and performance.
Flow Formed

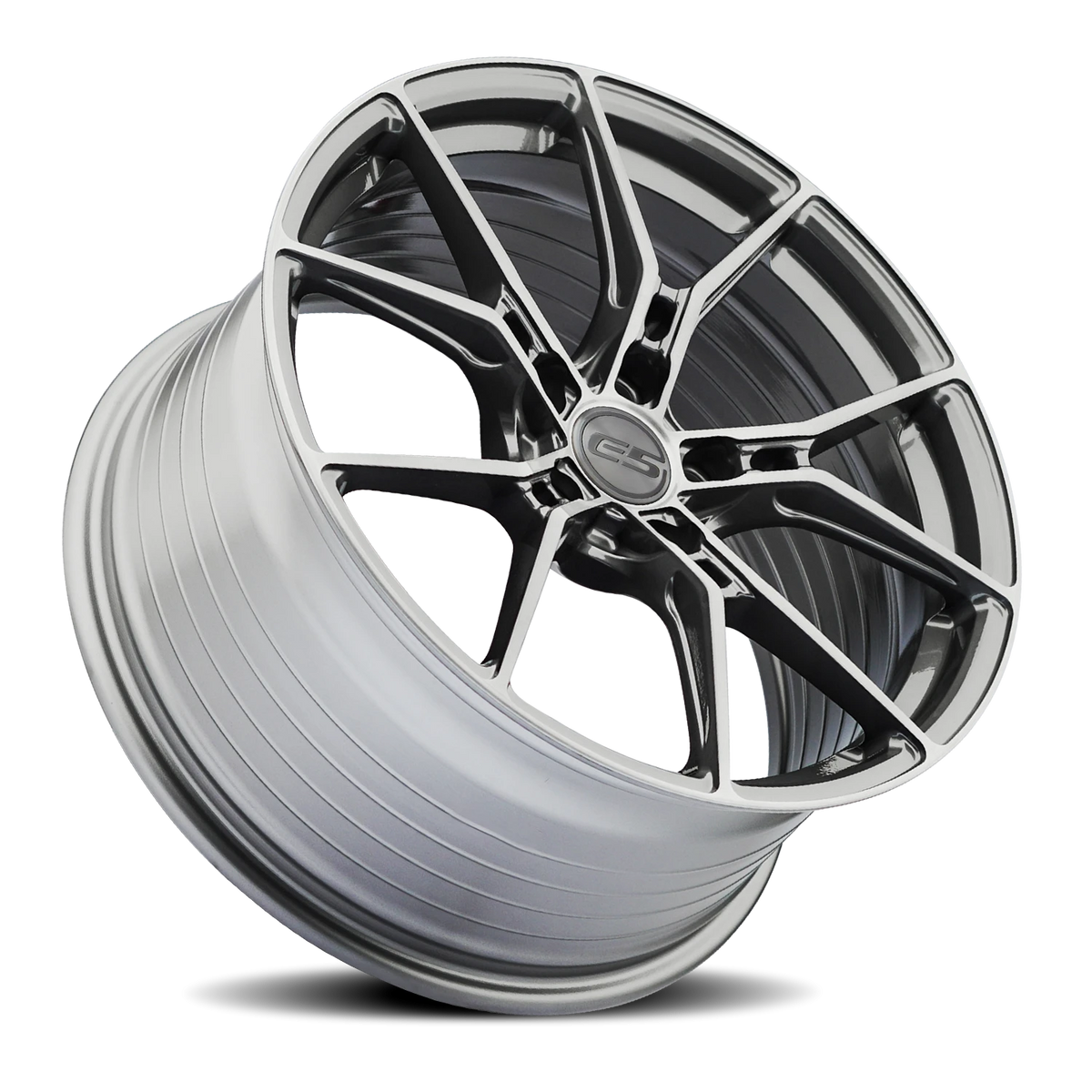

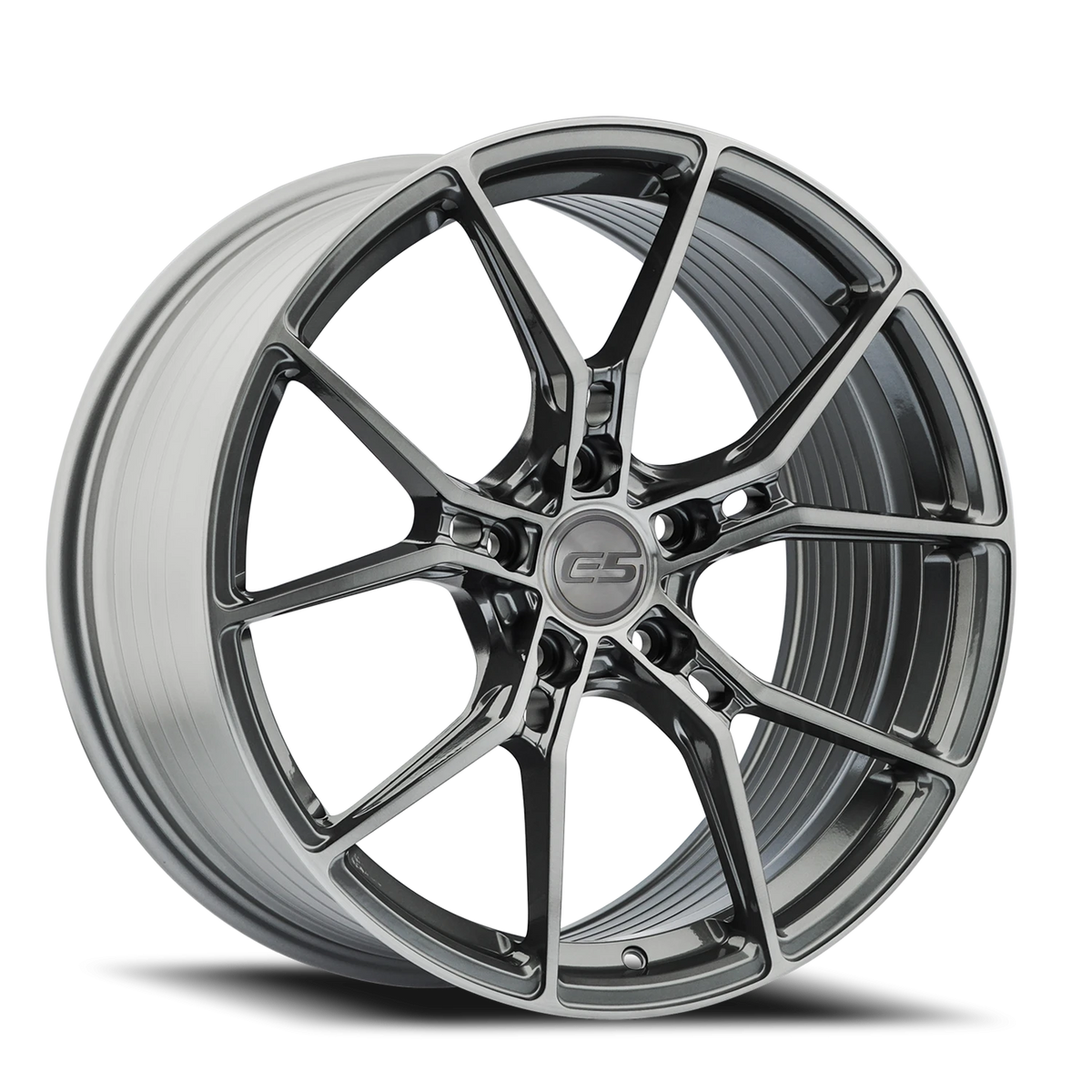

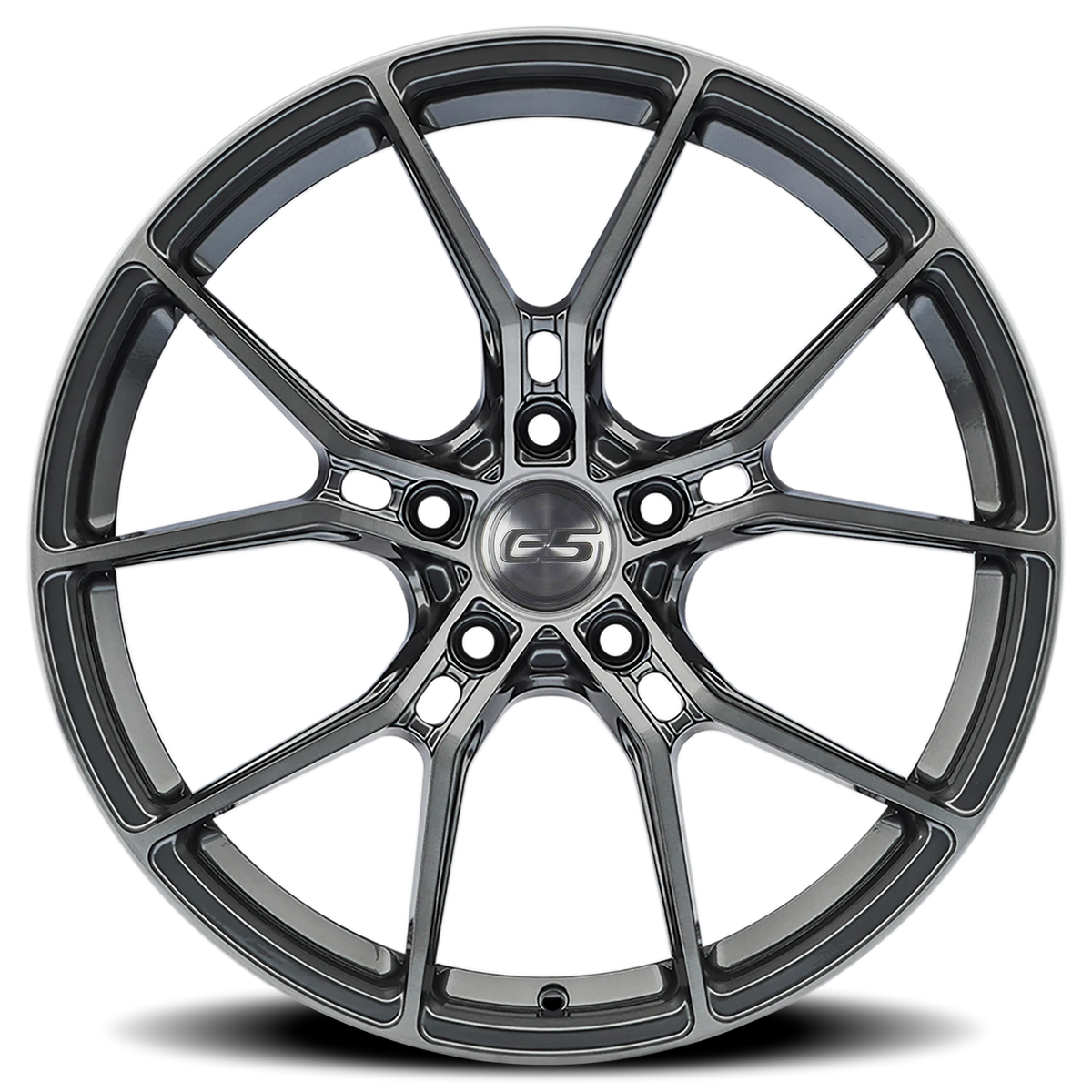

E5 Daytona Titanium Brushed Tint 19x9.5 front / 20x11 rear wheels for the 2014-2019 Chevrolet Corvette C7 Stingray. The Daytona is the lightest wheel in E5’s Form Forged Series: a clean 10-spoke design with a deep concave profile, engineered exclusively for the Corvette for street and track use. This complete staggered set is sized and offset specifically for your C7 Stingray — hub-centric, TPMS-ready and bolt-on with no spacers or hub rings.

Fits 2014-2019 Corvette C7 Stingray19x9.5 ET53 front20x11 ET76 rearForm Forged (flow formed)Set of 4E5 center caps included5-year warranty
Please contact Vibe Motorsports to check availability before purchasing. Need tires too? Ask us for a wheel & tire package — mounting, Road Force balancing, black lug nuts and transfer of your factory TPMS sensors are included.

Why the E5 Daytona

  • Corvette-only engineering — E5 makes no universal fitments; every size and offset is designed around the Corvette platform for a flush, aggressive stance.
  • Forged DNA, flow-formed barrel — heat and pressure stretch the barrel for forged-like strength, lower weight and better impact resistance.
  • Deep concave 10-spoke design with motorsport styling that still works as a daily driver.
  • Hub-centric fit (70.3mm center bore) for smooth, vibration-free driving.
  • Factory TPMS compatible — reuse your 315 MHz OEM sensors.
  • Backed by E5’s 5-year warranty and sold by an authorized E5 Wheels dealer.

Specifications

FRONT (x2)19x9.5ET53 · 19″
REAR (x2)20x11ET76 · 20″
Brand E5 Wheels
Model Daytona
Series Form Forged Series
Finish Titanium Brushed Tint
Front wheel 19x9.5 · +53mm offset · Part # E5DA1995E53565TIU
Rear wheel 20x11 · +76mm offset · Part # E5DA2011E76565TIU
Bolt pattern 5x120.65 (drilled 5x120.65 / 5x120 dual pattern)
Center bore 70.3 (hub-centric fit - no rings needed)
Construction Flow Formed aluminum
Spoke style Split Spoke / Concave
Lug nuts M12 x 1.5 conical (60°) seat · 19mm socket
Lug torque 100 ft-lbs
TPMS Compatible with factory sensors
Center caps E5 Center Caps Included
Quantity Set of 4 (2 front + 2 rear)
Condition Brand New in Packaging
Warranty 5-year E5 warranty

Fitment: 2014-2019 Chevrolet Corvette C7 Stingray

This setup is verified by E5 for the following vehicles:

  • 2014-2019 Chevrolet Corvette Stingray Convertible 2-Door
  • 2014-2019 Chevrolet Corvette Stingray Coupe 2-Door
  • 2014-2019 Chevrolet Corvette Z51 Convertible 2-Door
  • 2014-2019 Chevrolet Corvette Z51 Coupe 2-Door

Not sure which E5 setup fits your Corvette? Use the vehicle search on our site or contact us with your year and trim — we’ll confirm fitment before you order.

Choose your finish

The E5 Daytona in 19x9.5 / 20x11 for the Corvette C7 Stingray is available in:

E5 Daytona Gloss BlackGloss BlackE5 Daytona Bronze Brushed TintBronze Brushed TintE5 Daytona Titanium Brushed TintTitanium Brushed TintE5 Daytona ChromeChrome

Finish close-ups

Tap any finish to view the full-size close-up.

E5 Gloss Black finish close-upGloss Black 🔍E5 Titanium Brushed Tint finish close-upTitanium Brushed Tint 🔍E5 Bronze Brushed Tint finish close-upBronze Brushed Tint 🔍E5 Dark Bronze finish close-upDark Bronze 🔍

Other E5 styles for your Corvette C7 Stingray

E5 Sebring Titanium Brushed TintE5 Sebring

Videos

E5 Form Forged process: how the wheels are made

E5 Wheels: exclusively engineered for Corvettes

How it’s made: the Form Forged process

Every Form Forged wheel starts as a cast preform and is finished with flow forming:

Flow forming diagram: 1. Mount & heat1. Mount & heat
The wheel blank is mounted to the forming drum and heated to prepare the aluminum for shaping.
Flow forming diagram: 2. Roll forming2. Roll forming
Hydraulic rollers apply calculated pressure to the spinning barrel, extending it into the rim profile.
Flow forming diagram: 3. Compression & stretch3. Compression & stretch
The barrel is compressed and stretched to its final width and thickness, aligning the grain structure.
Flow forming diagram: 4. Finalized barrel4. Finalized barrel
The result is a thinner, lighter, stronger barrel with forged-like durability and load capacity.

Installation & torque specs (C7 Stingray)

Item Spec
Lug thread M12 x 1.5
Seat type Conical 60°
Socket 19mm
Final torque 100 ft-lbs, star pattern
Re-torque After 50–100 miles
Hub bore 70.3 (hub-centric fit - no rings needed)

Professional installation is recommended. Clean the hub face, hand-thread lugs in a star pattern, torque to 50% then to final spec, and re-check after 50–100 miles. After transferring TPMS sensors, run the relearn procedure from the vehicle menu or a scan tool.

What’s included

  • 2 × 19x9.5 front wheels
  • 2 × 20x11 rear wheels
  • E5 center caps

Warranty

E5 warrants its wheels against defects in material and workmanship for five years from retail purchase, including the finish, and against structural failure under normal use for as long as the original purchaser owns them. Racing, accidents and improper installation or maintenance are not covered.

FAQ

Will these wheels fit my 2014-2019 Corvette C7 Stingray?

Yes. This 19x9.5 / 20x11 staggered set is an E5-verified fitment for: 2014-2019 Chevrolet Corvette Stingray Convertible 2-Door; 2014-2019 Chevrolet Corvette Stingray Coupe 2-Door; 2014-2019 Chevrolet Corvette Z51 Convertible 2-Door; 2014-2019 Chevrolet Corvette Z51 Coupe 2-Door. No spacers, trimming or hub rings are required.

Do I need hub-centric rings?

No. The wheels are hub-centric for your Corvette (70.3mm center bore), so no rings are needed.

Can I reuse my factory TPMS sensors?

Yes. E5 wheels accept factory Corvette 315 MHz TPMS sensors. Replace the valve stem seals during transfer and perform a TPMS relearn.

What lug nuts and torque do I need?

Use M12 x 1.5 conical 60° seat lug nuts with a 19mm socket and torque to 100 ft-lbs. Re-torque after 50–100 miles.

What does Form Forged mean?

E5’s Form Forged Series uses flow forming: the barrel is heated and rolled under pressure, stretching and compressing the aluminum for a lighter, stronger, forged-like barrel at a fraction of the cost of a fully forged wheel.

Is this sold as a set?

Yes. You receive a complete staggered set of 4 wheels (2 front, 2 rear) with E5 center caps.

Can you mount tires?

Yes. Ask us for a wheel & tire package: mounting, Road Force balancing, black lug nuts and TPMS sensor transfer are included.
