20/21" E5 Forged Sonoma Gloss Black 20x10 21x13 Wheels for Corvette C8 Z06 / E-Ray / ZR1 | Set of 4
Authorized E5 Wheels Dealer | Made to Order | Set of 4
Finish: Gloss Black
20/21" E5 Forged Sonoma Gloss Black 20x10 21x13 Wheels for Corvette C8 Z06 / E-Ray / ZR1 | Set of 4 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Contact us
20/21" E5 Forged Sonoma Gloss Black 20x10 21x13 Wheels for Corvette C8 Z06 / E-Ray / ZR1 | Set of 4
20/21" E5 Forged Sonoma Gloss Black 20x10 21x13 Wheels for Cor...
Specifications
-
Brand
- E5
-
Model Name
- Sonoma
-
Wheel Size
- 20x10 Front and 21x13 Rear
-
Center Bore
- 66.9mm (hub-centric fit - no rings needed)
-
Center Caps
- E5 Center Caps Included
-
Finish
- Black
-
Bolt Pattern
- 5x120
-
Offset
- 25mm front and 20mm rear
-
TPMS Compatible
- YES
-
Quantity
- Set of 4
-
Structure
- Forged Monoblock

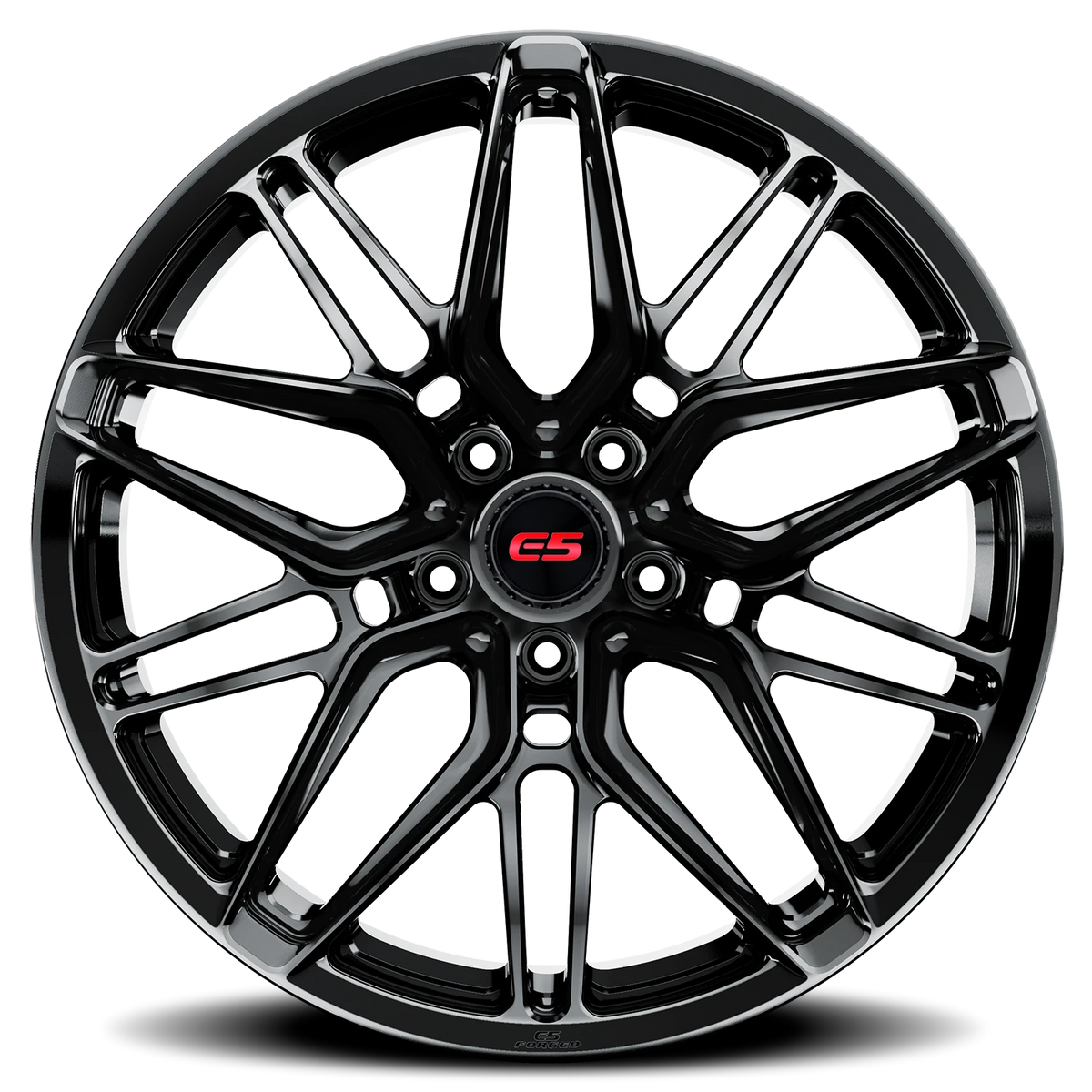

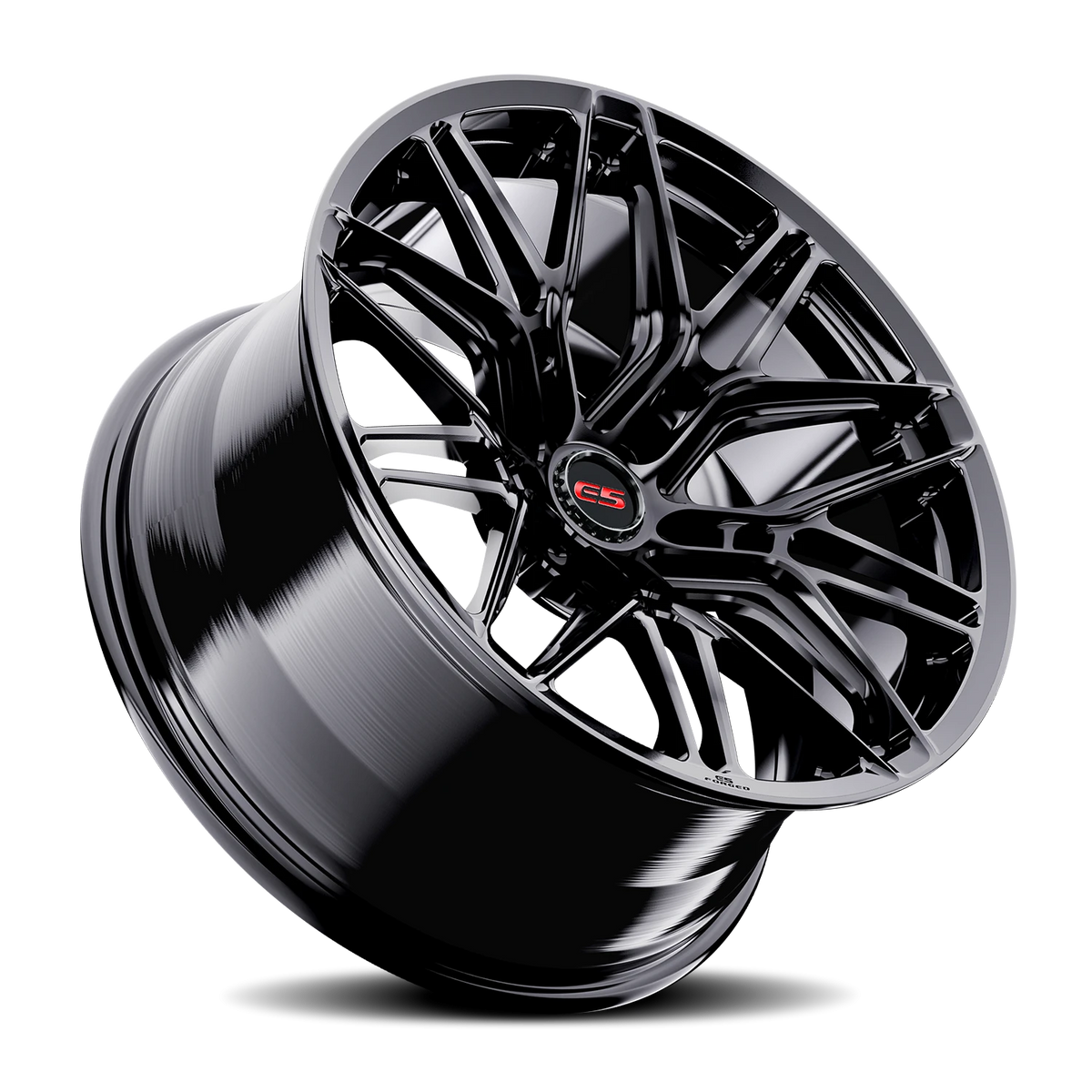

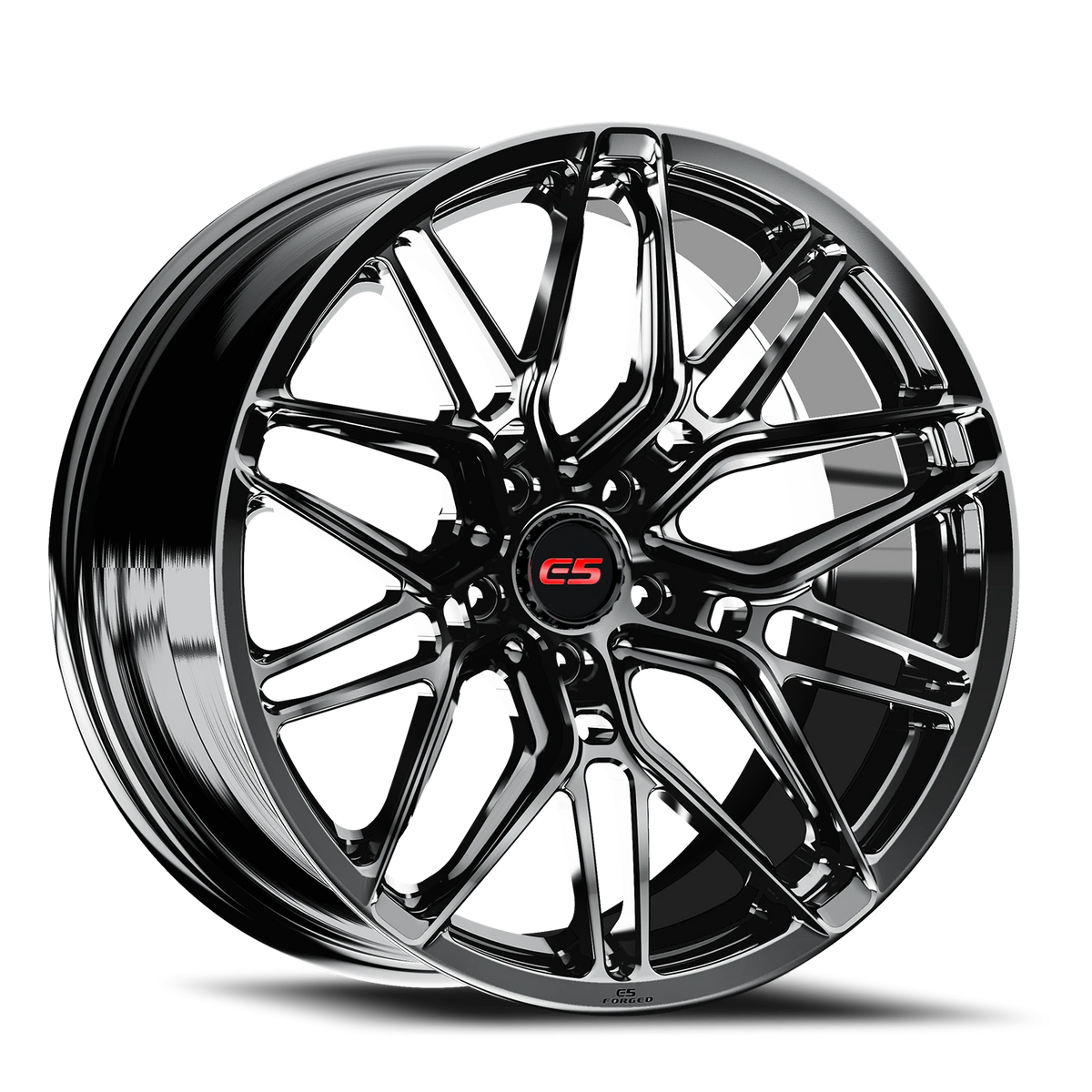

E5 Forged Sonoma Gloss Black wheels, 20x10 front / 21x13 rear, for the Chevrolet Corvette C8 Z06 / E-Ray / ZR1. The Sonoma expands the E5 Forged Series with a refined, performance-focused mesh profile. It is fully forged, weight-optimized and Made in the USA, with precision-cut pocketing and a clean, elevated look. This complete staggered set is fully forged from 6061 aluminum in the USA, sized and offset specifically for the C8 widebody: hub-centric, TPMS-ready and bolt-on with no spacers or hub rings.
Why the E5 Forged Sonoma
- Fully forged, monoblock construction — machined from a 6061 aerospace-grade aluminum forging for maximum strength-to-weight. This is E5’s top-tier line, a step above the flow-formed Form Forged Series.
- Made in the USA — forged in the United States, 5-axis CNC machined in California and hand-finished.
- Corvette-only engineering — developed exclusively for the C8 widebody platform for a flush, aggressive fitment.
- Mesh design with motorsport styling and precision weight reduction.
- Hub-centric fit (66.9mm center bore) and a 1,500 lb load rating per wheel.
- Factory TPMS compatible — reuse your OEM sensors.
Specifications
| Brand | E5 Wheels |
|---|---|
| Model | Sonoma |
| Series | E5 Forged |
| Finish | Gloss Black |
| Front wheel | 20x10 · +25mm offset · Part # E5SO2010E25520BK |
| Rear wheel | 21x13 · +20mm offset · Part # E5SO2113E20520BK |
| Bolt pattern | 5x120.65 / 5x120 |
| Center bore | 66.9mm (hub-centric) |
| Load rating | 1,500 lbs per wheel |
| Construction | Monoblock fully forged 6061 aluminum |
| Made in | USA |
| Spoke style | mesh |
| Lug nuts | M14 x 1.5 conical (60°) seat · 21mm socket |
| Lug torque | 129 ft-lbs |
| TPMS | Compatible with factory sensors |
| Quantity | Set of 4 (2 front + 2 rear) |
| Lead time | Custom made to order, approx. 4 weeks |
| Condition | Brand new |
Fitment: Chevrolet Corvette C8 Z06 / E-Ray / ZR1
E5 builds the Sonoma exclusively for these vehicles:
- 2023-2027 Chevrolet Corvette Z06 Coupe
- 2023-2027 Chevrolet Corvette Z06 Convertible
- 2023-2027 Chevrolet Corvette E-Ray Coupe
- 2023-2027 Chevrolet Corvette E-Ray Convertible
- 2023-2027 Chevrolet Corvette ZR1 Coupe
- 2023-2027 Chevrolet Corvette ZR1 Convertible
Not sure this fits your Corvette? Contact us with your year and trim and we’ll confirm fitment before your set goes into production.
Choose your finish
The E5 Forged Sonoma is available in:
Brushed Aluminum
Gloss Black
Polished
Satin BlackLooking for a custom finish? E5 offers additional custom finishes on request — ask us for a quote.
Other E5 styles for your C8 widebody
E5 Forged Talladega
E5 Forged Laguna
E5 Sebring 2PVideos
E5 Forged Sonoma on a C8 Corvette Z06
How E5 Forged wheels are made
How it’s made: the E5 Forged process
Forged in the USA and engineered without compromise. Every E5 Forged wheel goes through five steps:
1. Material6061 aerospace-grade aluminum billet, selected for strength and consistency.
2. ForgingHigh-pressure forging refines the grain structure for greater density and durability.
3. Machine5-axis CNC machining in California removes material with precision and purpose.
4. RefineHand-finished details for symmetry, sharp definition and visual clarity.
5. FinishPremium finishes are applied and inspected for performance and longevity.
Installation & torque specs (C8)
| Item | Spec |
|---|---|
| Lug thread | M14 x 1.5 |
| Seat type | Conical 60° |
| Socket | 21mm |
| Final torque | 129 ft-lbs, star pattern |
| Re-torque | After 50–100 miles |
| Hub bore | 66.9mm |
Professional installation is recommended. Clean the hub face, hand-thread lugs in a star pattern, torque to 50% then to final spec, and re-check after 50–100 miles. After transferring TPMS sensors, run the relearn procedure.
What’s included
- 2 × 20x10 front wheels
- 2 × 21x13 rear wheels
- E5 center caps
FAQ
How long does it take to get my wheels?
E5 Forged wheels are custom made to order. Expect about 4 weeks of production before your set ships. We’ll confirm your build slot and keep you updated.
Will these fit my Corvette?
This 20x10 / 21x13 staggered set is engineered for: 2023-2027 Chevrolet Corvette Z06 Coupe; 2023-2027 Chevrolet Corvette Z06 Convertible; 2023-2027 Chevrolet Corvette E-Ray Coupe; 2023-2027 Chevrolet Corvette E-Ray Convertible; 2023-2027 Chevrolet Corvette ZR1 Coupe; 2023-2027 Chevrolet Corvette ZR1 Convertible. It does not fit the narrow-body C8 Stingray.
What is the difference between E5 Forged and Form Forged?
E5 Forged wheels are fully forged monoblock wheels machined from a 6061 aluminum forging in the USA — the strongest and lightest construction E5 offers. Form Forged wheels use a flow-formed barrel on a cast center.
Can I reuse my factory TPMS sensors?
Yes. Replace the valve stem seals during transfer and perform a TPMS relearn.
What lug nuts and torque do I need?
Use M14 x 1.5 conical 60° seat lug nuts with a 21mm socket and torque to 129 ft-lbs. Re-torque after 50–100 miles.
Can I get a custom finish?
Yes. Contact us; E5 offers additional finishes on request.
Can you mount tires?
Yes. Ask us for a wheel & tire package: mounting, Road Force balancing, black lug nuts and TPMS sensor transfer are included.
Vibe Motorsports is an authorized E5 Wheels dealer.
